Diffused Aeration – Fine and Coarse Bubble Systems
Aquarius diffused aeration systems are designed as complete air delivery systems—not just diffuser components—to deliver consistent biological treatment performance while reducing energy consumption and lifecycle cost. Our team works with engineers, contractors, and owners to evaluate each application and design the most effective fine or coarse bubble solution.
- Application-specific system design and engineering support
- Optimized aeration performance with reduced energy demand
- Proven system configurations based on real-world installations
- High manufacturing consistency and quality control
- Reliable operation with low total cost of ownershipFine Bubble vs. Coarse Bubble Aeration
Fine Bubble vs. Coarse Bubble Aeration
Fine bubble systems maximize oxygen transfer efficiency, while coarse bubble systems provide higher mixing energy and improved performance in high-solids applications.
Find the right overview now:
Design Basics / Applications QUANTAER® Fine bubble QUANTAER® Fine bubble / Resources Coarse Bubble Coarse Bubble / Reources Monitoring & Cleaning Combining aeration / mixing System Upgrades Project gallery
Design Basics/Applications
Aquarius works closely with engineers and owners to design aeration and mixing systems tailored to each application. Using project-specific data, our team develops system designs that meet performance targets while optimizing energy use, installation, and long-term operation.
Our Design Request Questionnaire captures the key inputs required to ensure a successful and efficient system design.
Design parameters critical for determining the most efficient system to meet your aeration and mixing objectives include:
- Type of Diffused Aeration System
- Basin / Tank Sizing
- Number of Diffusers and Aeration Grid Configuration
- Airflow and Pressure Requirements
Each aeration system design includes design calculations, performance data, specifications, layout drawings and system support.
An Aquarius QUANTAER® Diffused Aeration System can be designed for installation in concrete (poured in place or pre-cast), steel or fiberglass tanks / basins. Attention to ease of installation, low maintenance and reduced replacement costs are considerations in selecting the right solution to meet or exceed performance expectations.
Each municipal and industrial application requires a specific design. We understand that delivering dissolved oxygen and mixing energy into a unit process takes more than just adding diffusers. It requires application experience to ensure the most efficient and performance proven design is recommended.

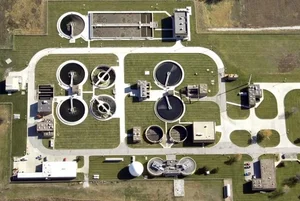

Aquarius Fine and Coarse Bubble Aeration Systems are utilized in a number of treatment unit processes including:
- Aerated Equalization
- Aeration Basins
- Post Aeration
- Sludge Holding
- Aerobic Digester
- Influent Channel
- Splitter Box
- Blending
- Swing Zone
- Chemical Dosing
Visit Our Project Gallery and view a variety of Customer Solutions we have provided over the last decade.

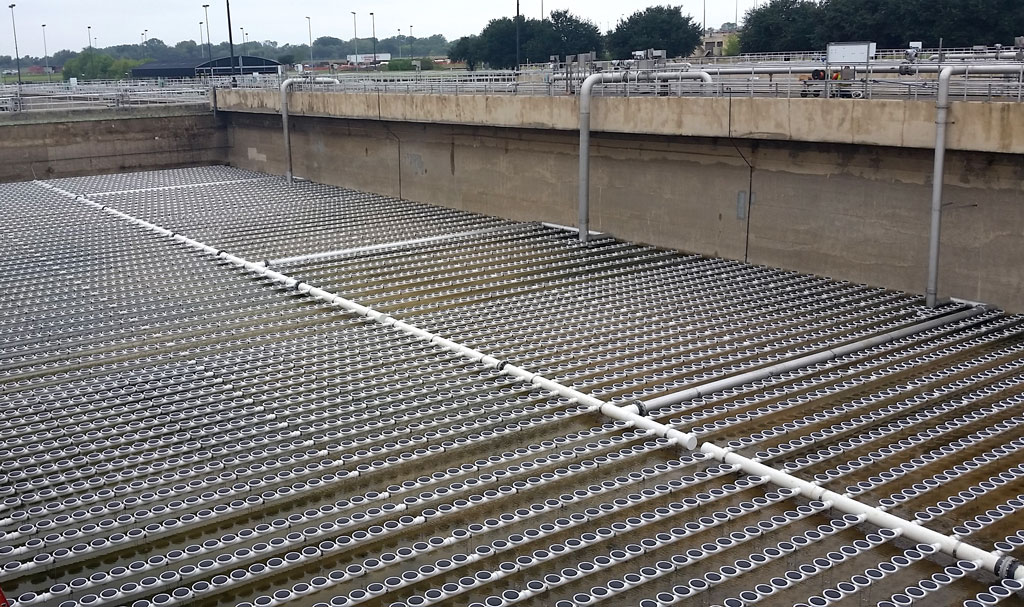

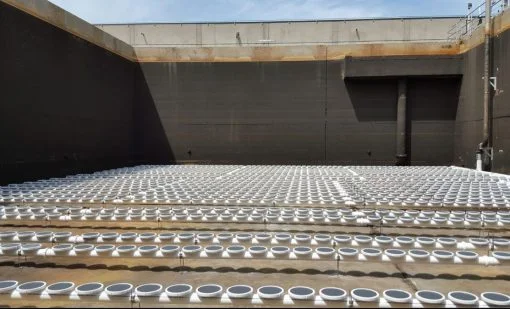

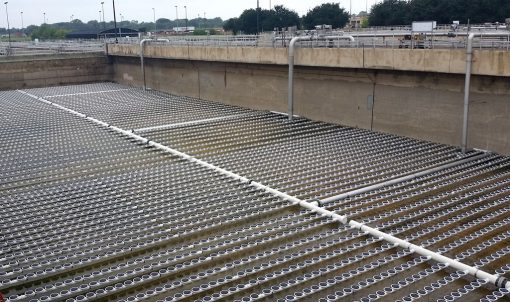

QUANTAER® Fine bubble aeration systems
Effective fine bubble aeration depends on more than diffuser selection—it requires a properly designed air delivery system.
Aquarius integrates high-efficiency disc diffusers with a proprietary air distribution system to deliver consistent airflow, uniform coverage, and optimized oxygen transfer performance.
Available Diffuser Technologies Include:
- EPDM membrane disc diffusres (Standard and Low Pressure)
- Ceramic Disc Diffusers
- Messener Plate Diffusers (Need a new page for this)
- Tube Diffusres (need new page – from Suprafilt)

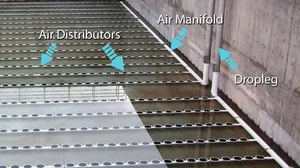

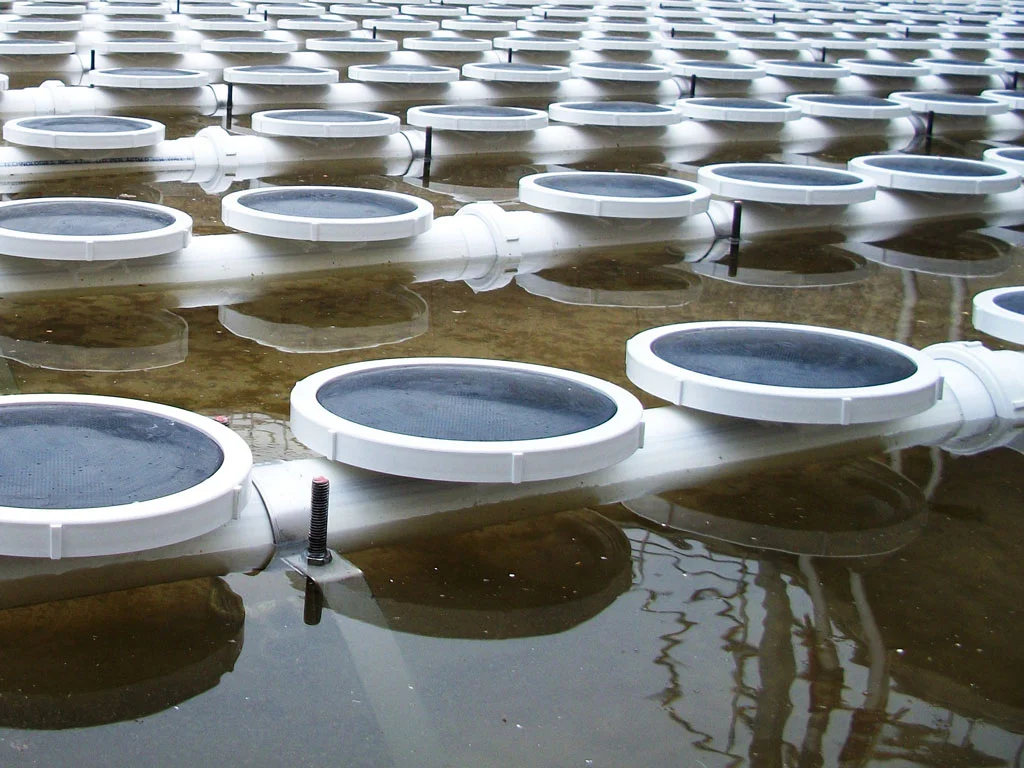

Every aeration system depends on a reliable air distribution grid. Aquarius systems are designed for long-term durability, consistent performance, and simplified installation.
Our automated manufacturing process ensures repeatable quality, while engineered connections and joint designs reduce the risk of leakage, failure, and long-term maintenance issues.
Key design features include:
- Durable piping and fixed joint design for long-term performance
- Proprietary threaded connections to improve joint reliability
- Enhanced sealing design to reduce leakage risk
- Anti-rotational joints to minimize stress and fatigue
- Factory-assembled diffuser holders (no field bonding required)
- Robust mechanical connections stronger than the pipe itself
- No field-installed gaskets required
- Integrated air purge capability
- Condensation management options for improved system operation
- Dropleg: 304L or 316L Stainless Steel
- Manifold: Stainless Steel or Polyvinyl Chloride (PVC) to Prevent Ultraviolet (UV) degradation
- Air Distributors: PVC
- Supports and Anchors: 304 or 316 Stainless Steel
- Gaskets: Styrene-butadiene (SBR) Natural Rubber, Ethylene Propylene Diene Monomer (EPDM) or Neoprene
Constructed of an advanced EPDM membrane blend with less than 10% extractable oils results in longer life and energy efficiency. The proprietary perforation pattern is designed for increased oxygen transfer efficiencies and energy savings. Improved air distribution allows for few diffusers without sacrificing performance. The integral check valve prevents back flow during intermittent operation.
EPDM standard disc diffusers are ideal for activated sludge aeration, swing zones in biological nutrient removal applications, and mixing applications.
Operating Range
- Configuration: 9-inch Disc
- Normal Airflow Per Diffuser: 0.5 to 4 SCFM
- Design Airflow Per Diffuser: 1.25 to 1.5 SCFM
- Typical Standard Oxygen Transfer Efficiencies Over 2 Percent Per Foot of Submergence
Constructed of the same advanced EPDM membrane blend as the Standard Membrane Disc Diffuser, the Low Pressure Disc Diffuser provides a unique perforation pattern with lower headloss as the membrane gradually expands when air flow increases. EPDM Low Pressure Membrane Disc Diffusers are capable of operating over a wide range of air flows while maintaining consistent oxygen transfer efficiency. The same effective integral check valve utilized on the Standard Membrane Disc Diffuser prevents back-flow and is a great choice for intermittent operation.
The EPDM Low Pressure Disc Diffuser is suitable for heavy solids, aerated mixing, and industrial applications requiring high air flow rates and can be utilized in EPDM Standard Membrane Disc Diffuser applications to meet lower headloss requirements.
Operating Range
- Configuration: 9-inch Disc
- Normal Airflow Per Diffuser: 0.5 to 10 SCFM
- Design Airflow Per Diffuser: 3 SCFM
- Typical Standard Oxygen Transfer Efficiencies Over 2 Percent Per Foot of Submergence
With the Quantaer™ Membrane Disc Diffuser (Standard or Low Pressure), Customers Experience:
- Higher Oxygen Transfer Efficiencies Compared to Other EPDM Membrane Diffusers
- Longer Effective Membrane Life and Chemical Stability
- Reduced Energy Costs
- Lower Maintenance and Less Frequent Replacement
- Typical Life Expectancy of 7-10 years
The Aquarius Ceramic Disc Diffuser is constructed of high temperature composite alumina oxide ceramic that is thermally bonded at high temperatures. The ceramic disc is highly resistant to harsh chemicals often found in industrial wastewater. The density of the ceramic disc across the diffuser varies with the contour profile and peripheral channel, ensuring uniform air bubble distribution over the entire diffuser compared to flat ceramic diffusers. The positive seal created by the compression of the O-ring seat prevents short circuiting near the retainer ring and minimizes diffuser fouling. To maintain peak efficiency clean in place monitoring and cleaning systems are available.
The Ceramic Disc Diffuser is suitable for activated sludge aeration and dependable performance in aggressive industrial wastewater and is recommended for continuous operation over a range of air flows.
Operating Range
- Configuration: 9-inch Disc
- Normal Airflow Per Diffuser: 0.5 to 4 SCFM
- Design Airflow Per Diffuser: 1.25 to 1.5 SCFM
- Typical Standard Oxygen Transfer Efficiencies Over 2 Percent Per Foot of Submergence
With the Quantaer Ceramic Disc Diffuser, Customers Experience:
- Reduced Operating Costs
- Low Maintenance Requirements
- Performance Recovery through In-Site Monitoring and Cleaning
- Typical Life Expectancy of 20 years

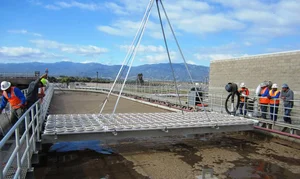

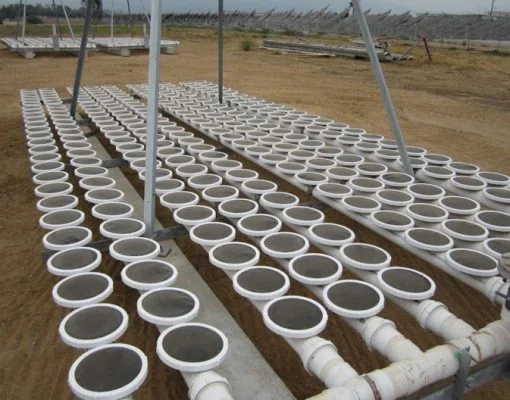

The Aquarius retrievable aeration grid is a solution for installations where the basin / tank cannot be taken out of service.
Retrievable aeration grids include:
- The Same Reliable Aeration Delivery System and Grid Design Utilized in our Fine and Coarse Bubble Diffused Aeration Systems
- EPDM Fine Bubble or Ceramic Diffuser as Required
- Lifting Frame and Ballast Designed for Each Application
- Rigid Four Point Lifting Mechanism and Hook to Engage Crane
A minimum of two grids per basin are recommended for continuous operation when one grid is out of service. Don't hesitate to consider this solution from Aquarius based on our proven performance, and design integrity.
Broschures - QUANTAER® Fine Bubble
Quantaer® Diffused Aeration Systems

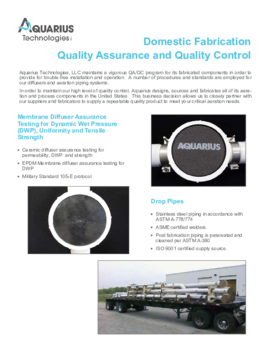

Domestic Fabrication - Quality Assurance and Quality Control

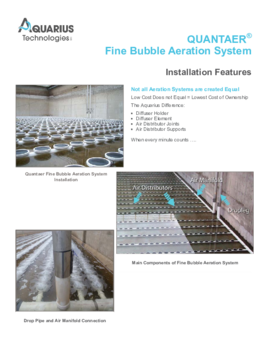

Quantaer® Installation Features
Diffused Aeration System Design Questionnaire

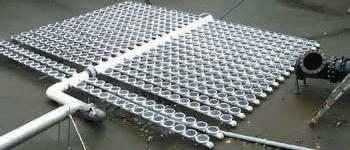

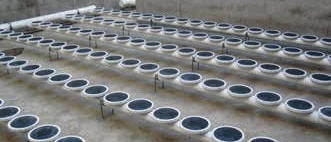

Case Studies – QUANTAER® Fine Bubble

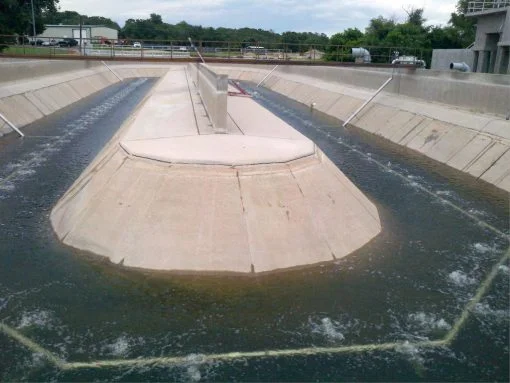

Coarse Bubble Aeration Systems
Aquarius coarse bubble aeration systems are designed for applications requiring high mixing energy, durability, and resistance to fouling.
These systems are ideal for high-solids environments where fine bubble diffusers may plug or where mixing performance is the primary objective rather than oxygen transfer efficiency.
Why Engineers Choose Aquarius:
- Application and process design expertise
- Proven performance in demanding environments
- Robust, low-maintenance system designs
- High-quality manufacturing and materials

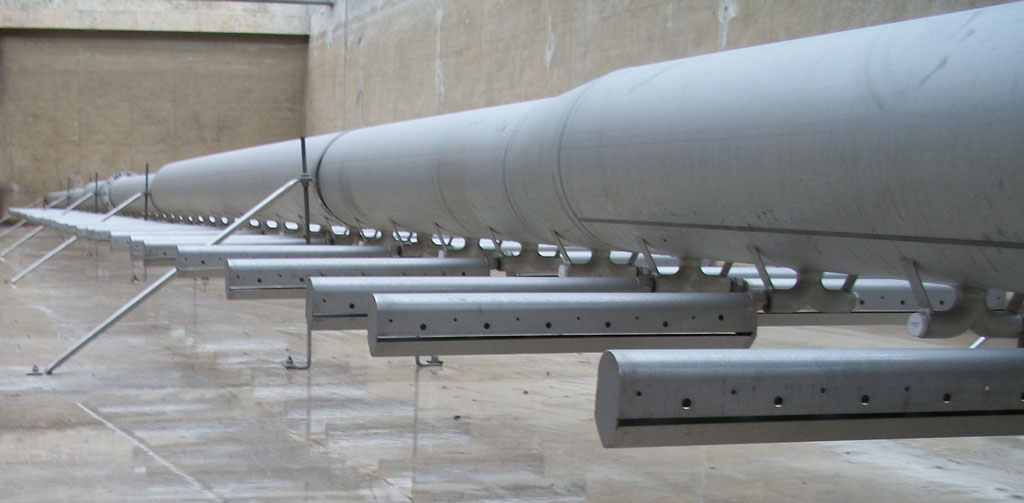

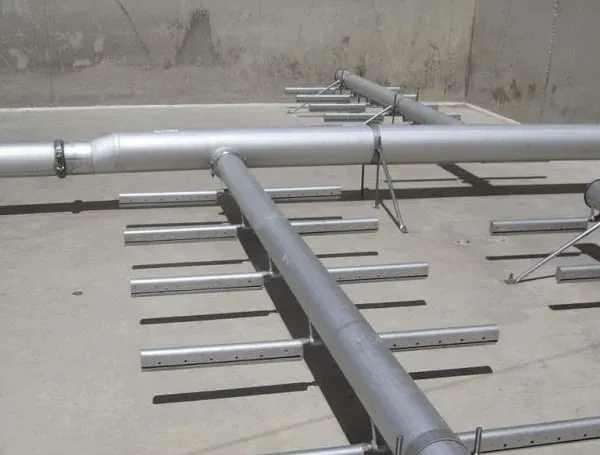

Wide band stainless steel diffusers are a proven solution for coarse bubble aeration, offering low headloss and reliable operation across a wide range of airflow conditions.
Their stainless steel construction provides durability in harsh wastewater environments, while the full-length design helps reduce fouling and maintain consistent performance.
Designed for applictations including activated sludge, aerated mixing, and aerobic digestion.
Operating Range
- Configuration: 12-inch and 24-inch Long
- Normal Airflow Per Diffuser: 5 to 50 SCFM
- Mixing Design: 20-30 SCFM Per 1,000 Cubic Feet of Volume
Materials of Construction
- 304L and 316L, 20 gauge Stainless Steel Diffuser Body
- Passivated Welded Assemblies Using Full Immersion Method
- 304 and 316 Stainless Steel Aeration Delivery System
Flexcap® diffusers are designed for high-solids applications where traditional coarse or fine bubble diffusers are prone to plugging.
The diaphragm check valve design releases air from the underside, reducing clogging while preventing backflow into the piping system when air is shut off. This results in more reliable operation and reduced maintenance in difficult process conditions.
Suitable for activated sludge, aerated mixing, and aerobic digestion applications.
Operating Range
- Normal Airflow Per Diffuser: 3 to 15 SCFM
- Mixing Design: 20-30 SCFM Per 1,000 Cubic Feet of Volume
Materials of Construction
- EPDM Diffuser With Polypropylene Base
- Aeration Delivery System Available in PVC, 304L or 316L Stainless Steel

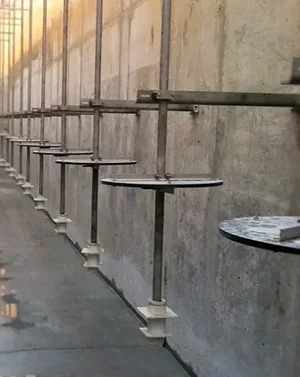

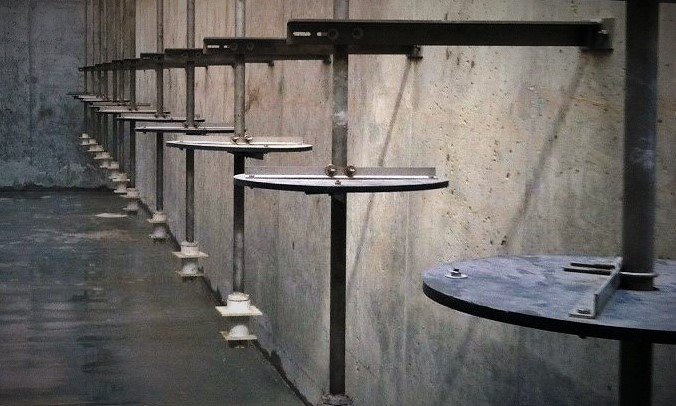

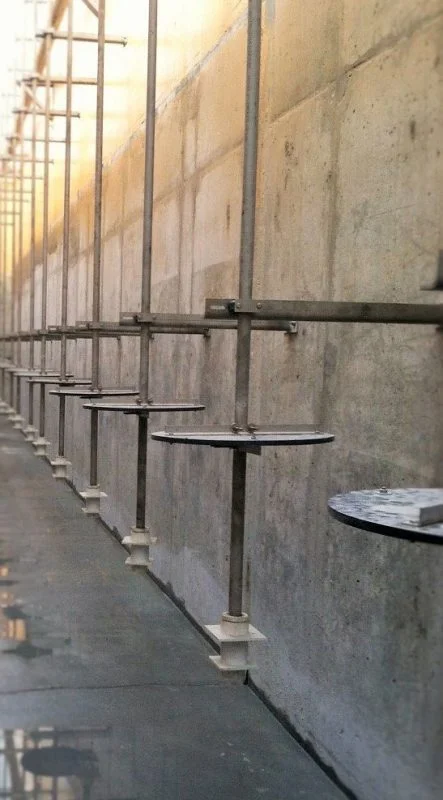

Single drop diffusers are designed for maintenance and service without dewatering the tank or basin.
With no small orifices located below the liquid level, the design reduces the risk of plugging and allows reliable operation across a wide range of airflow conditions.
Ideal for applications with heavy solids, sludge holding, and aerobic digesters.
Design Criteria
- Diameter: 3/4, 1, 1 1/2 and 2-Inch Diameter
- Mixing Design: 20-30 SCFM Per 1,000 Cubic Feet of Volume
Materials of Construction
- Polyvinyl Chloride (PVC) Diffuser Assembly
- 304, 316 Stainless Steel or Galvanized Steel Aeration Delivery System
Broschures - Coarse Bubble Aeration Systems
Coarse Bubble Aeration Systems Brochure
Diffused Aeration System Design Questionnaire
Monitoring & Cleaning Fine Bubble Aeration Systems
A customer's decision to monitor or incorporate a cleaning system into a fine bubble aeration system is a worthwhile investment for maintaining peak performance and extending the life of the system. The following benefits result when one or both are incorporated:
- Savings on Maintenance Costs
- Reduced Operating Cost by Maintaining Diffuser Performance
- Prevention of Premature Fouling and Failure of Diffuser Discs

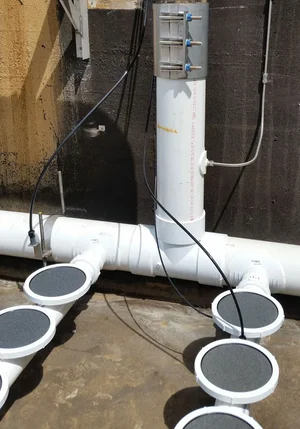

Aquarius designs and manufactures aeration system pressure monitoring systems for our fine bubble diffused aeration solutions. The pressure monitoring system provides:
- Determination of Airflow Rate Per Aeration Grid
- Monitoring Diffuser Pressure Changes Due to Fouling or Aging
- Trending of Pressure Changes for Scheduling Preventative Maintenance
The diffused aeration pressure monitoring system is optional and can be provided on every aeration grid or select aeration grids. Aquarius will work with you to determine if pressure monitoring is recommended for your fine bubble diffused aeration system.
Cleaning Our Fine Bubble Aeration System is Simple
The Aquarius chemical cleaning system is designed to maintain like new performance of fine bubble membrane and ceramic disc diffused aeration systems. The cleaning system operates without the need to interrupt the process or dewater the aeration basins. The system is easy to use, safe and effective.When diffuser cleaning is required due to an increase in operating pressure or a decrease in system efficiency, a chemical cleaning agent is introduced into the process air downstream of an individual aeration grid drop pipe. The process air distributes the cleaning chemical throughout the aeration grid to the diffusers.The cleaning chemical permeates the diffusers where it oxidizes mineral fouling and sloughs biological fouling from the diffuser surface. The Aquarius chemical cleaning system is most effective when used regularly as part of the plant's preventative maintenance procedures.
System Upgrades
Savings with system upgrades

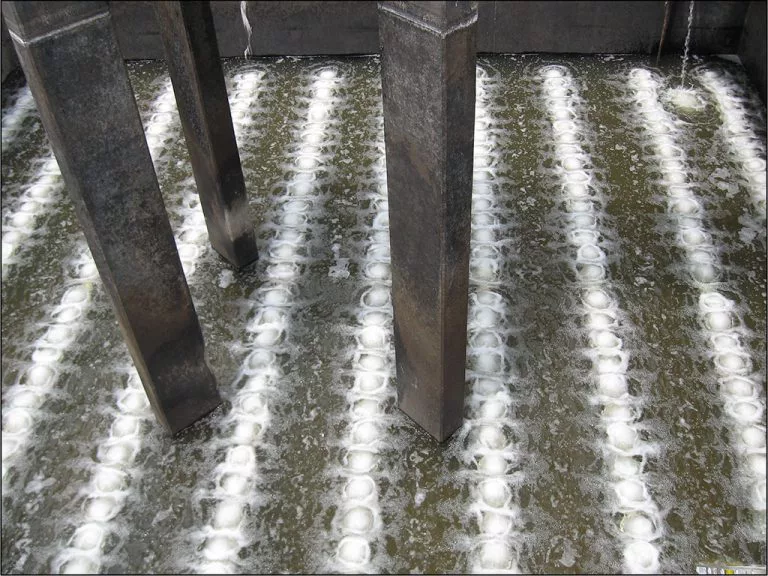

Upgrading mechanical or coarse bubble aeration systems to the QUANTAER® Fine Bubble Aeration Systems yields significant energy savings for our customers. Wastewater treatment plants that have upgraded have experienced 40 to 60 percent energy savings.
Aeration systems commonly replaced to increase efficiency include:
- Mechanical Aerators
- Jet Aerators
- Disc Aerators
- Rotor Aerators
Customers with existing fine bubble diffused aeration systems can upgrade to a Quantaer® Fine Bubble System to achieve:
- Better Performance with the Most Efficient Diffusers and Grid Design
- Increased Oxygen Transfer Capacity to Address Higher Loadings with Additional Air Distributors and Diffusers
- Reduced Maintenance Costs with Robust, Quality Equipment Built to Last
- On/Off operations by Replacing Ceramic Diffusers with Membrane Diffusers

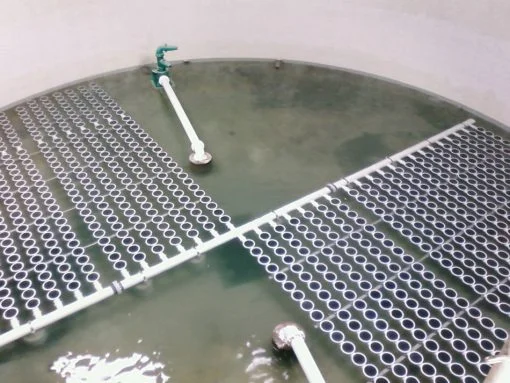

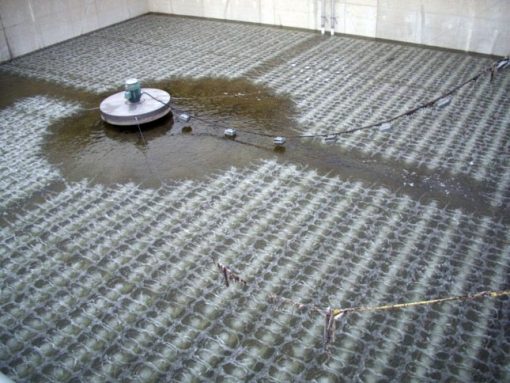

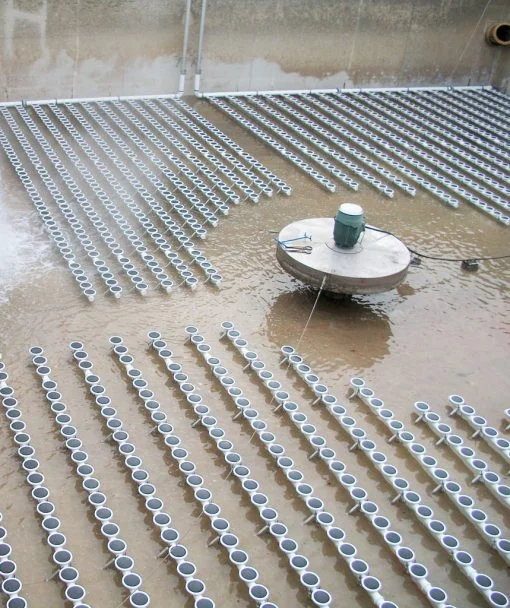

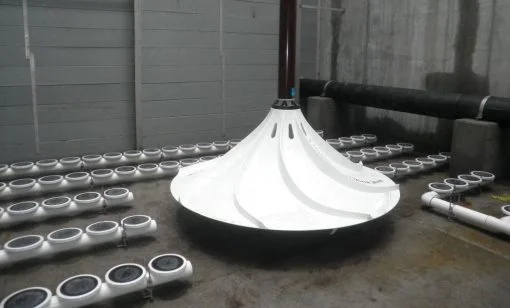

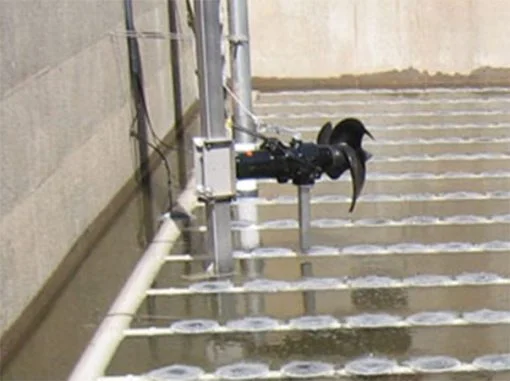

Combining aeration with mixers
Applications where independent mixers are utilized in combination with diffused aeration systems require knowledge and experience with several types of mixers.Proper application requires a thorough understanding of the fluid dynamics and forces of the various mixer styles to ensure the design and combined performance meet your application needs.Aquarius Aeration Systems have been utilized with the following types of independent mixers:
